Garage Lifts

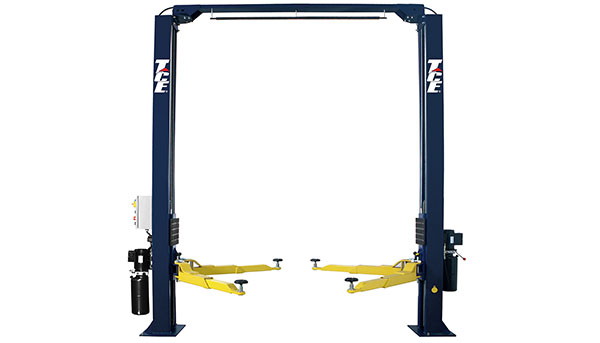

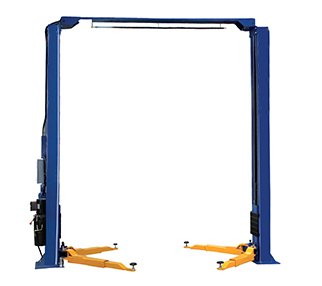

2 Post 4000kg Clear Floor Lift
Create an Account to View PricesBulk Order Discounts
| 1 | 2-4 | 5+ |
|---|---|---|
| €1,500.00 ex VAT | €1,463.41 ex VAT | €1,447.15 ex VAT |
Login / Create an Account to Show Price
Fully automatic electric control panel
Driven by dual hydraulic cylinders
Chain type lifting system
Internal Electric locking mechanism,w/two point safety latches in each column

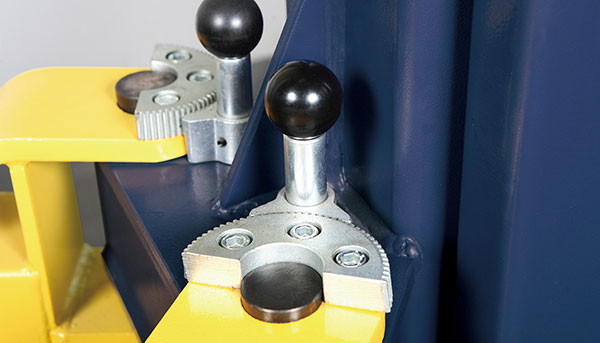

Automatic safety arm locks
Easy to operate up and down switches on electrical control box
Steel wire rope equalizing cables
Multi-voltage power supply is available for electrical requirements
Optional motors available
Adjustable lift pads and adapters
Durable powder coat finish
No Floorplate restrictions
Overhead crossover beam
Features
- Electromagnetic safety lock
- Raising electro – hydraulic
- Min. 104 mm lower arms
- Service vehicles with low suspension
- No lower fastener
- Increasing the stability of the upper beam column

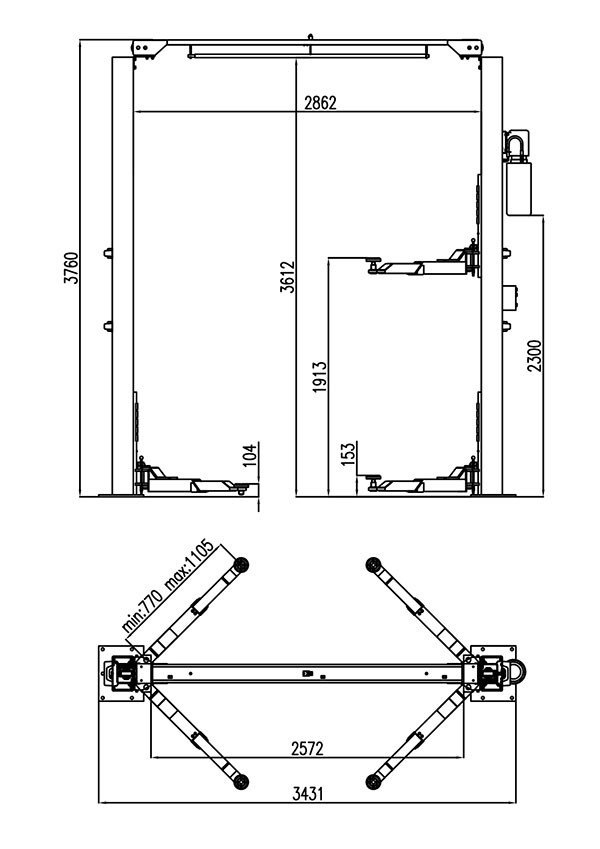

| Capacity | 4000 kg |
|---|---|
| Height. Total | 3762 mm |
| Time up / down | About 45-55 s |
| Max. height. Lifting | 1913 mm |
| Min. Height. Arms | 104 mm |
| The range of the supporting arms | 770 – 1105 mm |
| Ext. Column spacing | 2862 mm |
| W. Total | 3433 mm |
| net weight | 690 kg |
| anchor bolts | M18 x 150 |
| Min. Grade concrete | B25 / 30 (DIN 1045: 2001-07) |
| Engine power | 2.2 kW |
| Rated current | 14.6 A |
| fuse protection | 16 And |
| Power | 230v Single Phase |
| sound level | ≤80 dB (A) |
| Hydraulic oil | 46 |
Please contact us for information on pricing below.
Collected €1750 + VAT
Delivered €1850 + VAT
Delivered & Fitted €2000 + VAT
| Weight | 690 kg |
|---|
