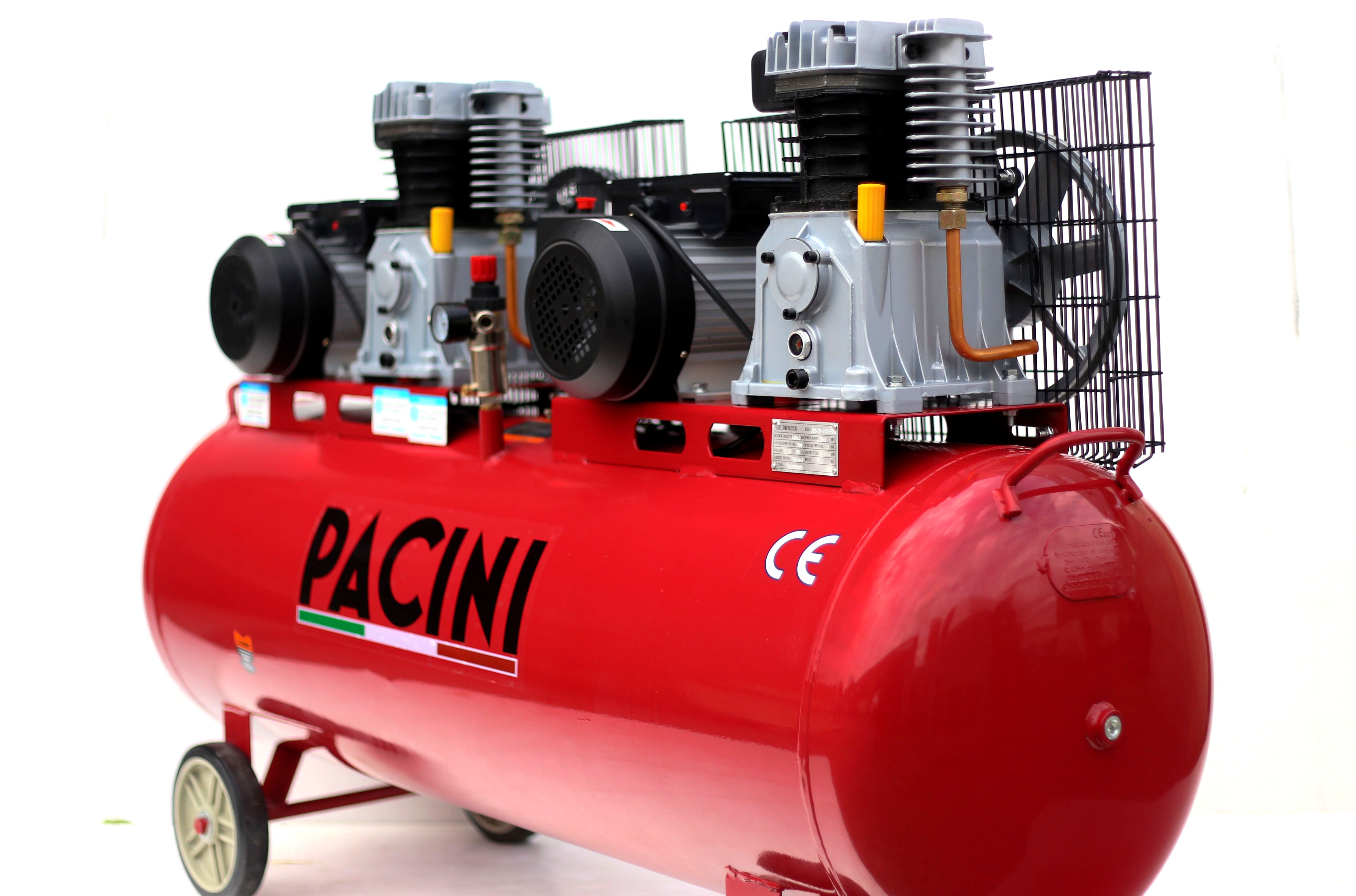

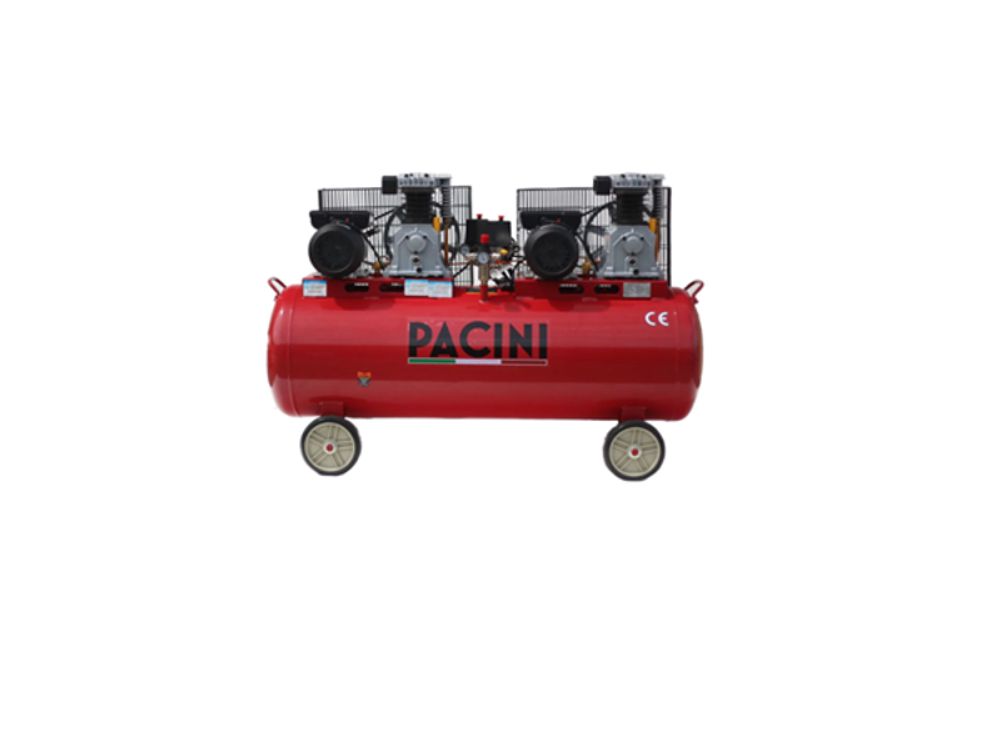

Pacini 300L 6hp Compressor, 10 Bar

1 Years Warranty

Alloy Side-by-side 4 cylinder,

Twin 14 cfm pumps

Twin 3 HP motors

Single phase

This compressor uses extra hard wearing, slow running pumps with after coolers as well as die-cast aluminium heads and cast-iron cylinders to provide air on demand over a long working lift.

Dimmensions 520 x 1580 x 1000mm.

For more information on Pacini see www.Paciniair.it

Features

• 28CFM piston displacement
• Large solid wheels for ease of transport
• Slow running belt for smooth, efficient operation
• Oil lubricated
• Multi-finned flywheel for improved cooling

• Piston displacemtn : 28 CFM
• Input voltage : 230V 50Hz
• Fuse rating : 2 x 13 amp
• Motor : 2x 3 HP = 6hp
• Receiver tank size : 300 litre
• Max. pressure 10 bar

 Please Note: this compressor should be wired direct to an on/off switch on the wall and the plug supplied should be bypassed.

**2 Year Warranty when purchased from 1st August 2019 onwards**
