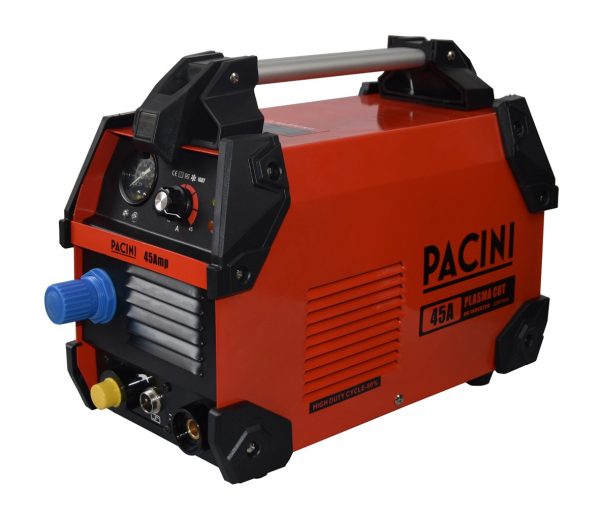

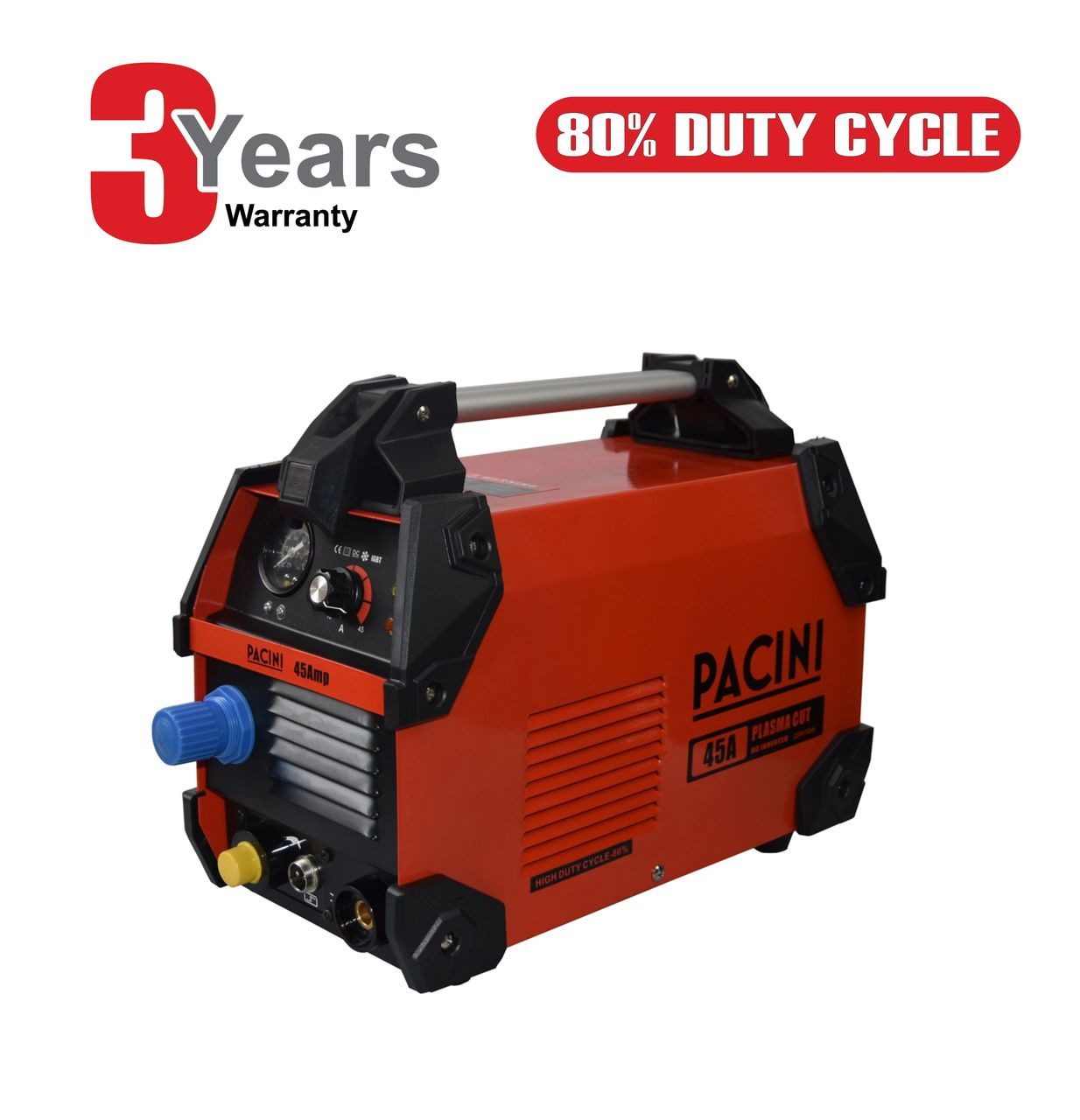

The Pacini Cut 45 is equipped with PWM technology and high powered IGBT components and is the perfect solution for cutting low carbon steel, stainless steel and aluminium.
This user-friendly and highly portable inverter offers smooth, fast and precise cutting on material up to 12mm and a maximum of 15mm, where a severance cut is required.
Another outstanding feature of this high specification model is PFC (Power Factor Correction) that provides substantial energy saving benefits for the user.
- 4 Meter leads
- Pulse-Width Modulation Controlled
- High Powered IGBT Components
- Integrated Air Gauge with Automatic Preset Pressure
- PFC – Energy Saving Inverter
- Cuts 12mm clean and 15mm severance
- Variable Cutting Control
- 2T – 4T Operation
- Air Check & Torch Protection Warning LED’s
- Mesh Cutting Mode
- Simple Operation
- Lightweight, portable modern design – Only 9.2 Kg
- Includes:PT31Plasma 4.0m Cutting Torch & Earth Return Lead
- CE Approval
- Arc ignition Without HF
- 3 year warranty
Plasma Cutter Specifications
SUPPLY VOLTAGE (V): 230
MAXIMUM CUTTING THICKNESS : 15mm
REQUIRED AIR FLOW (L/MIN): 170
NO-LOAD VOLTAGE (V): 280
CUTTING CURRENT (A): 20 – 45
RATED OUTPUT VOLTAGE (V): 98
RATED DUTY CYCLE : 80% @ 45A
EFFICIENCY (%): 85
POWER FACTOR : 0.99
INSULATION CLASS: F
PROTECTION CLASS: IP21S
OVERALL SIZE (L X W X H MM): 439 x 165 x 328
WEIGHT (KG): 9.2
