Welders & Plasma cutters

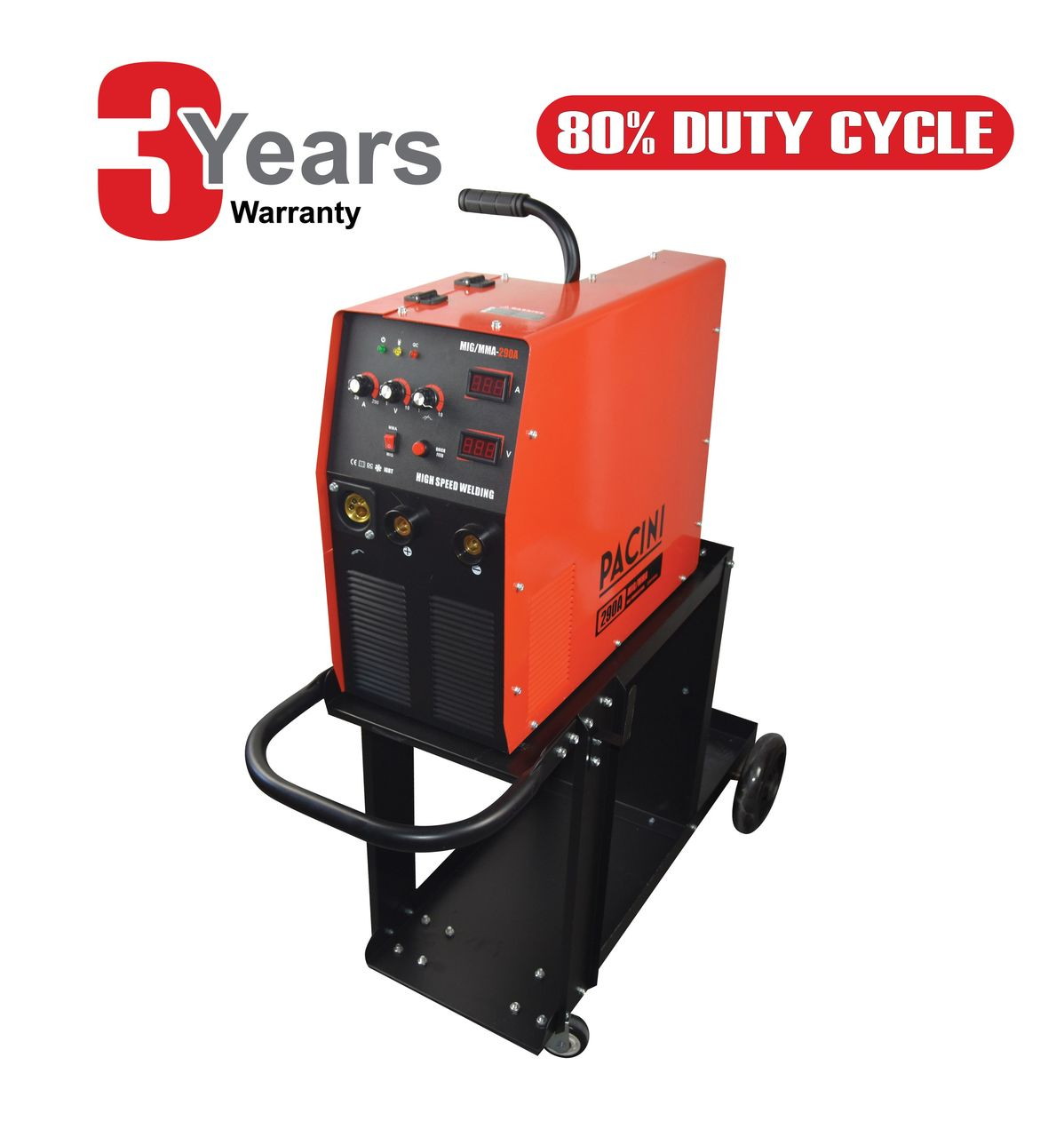

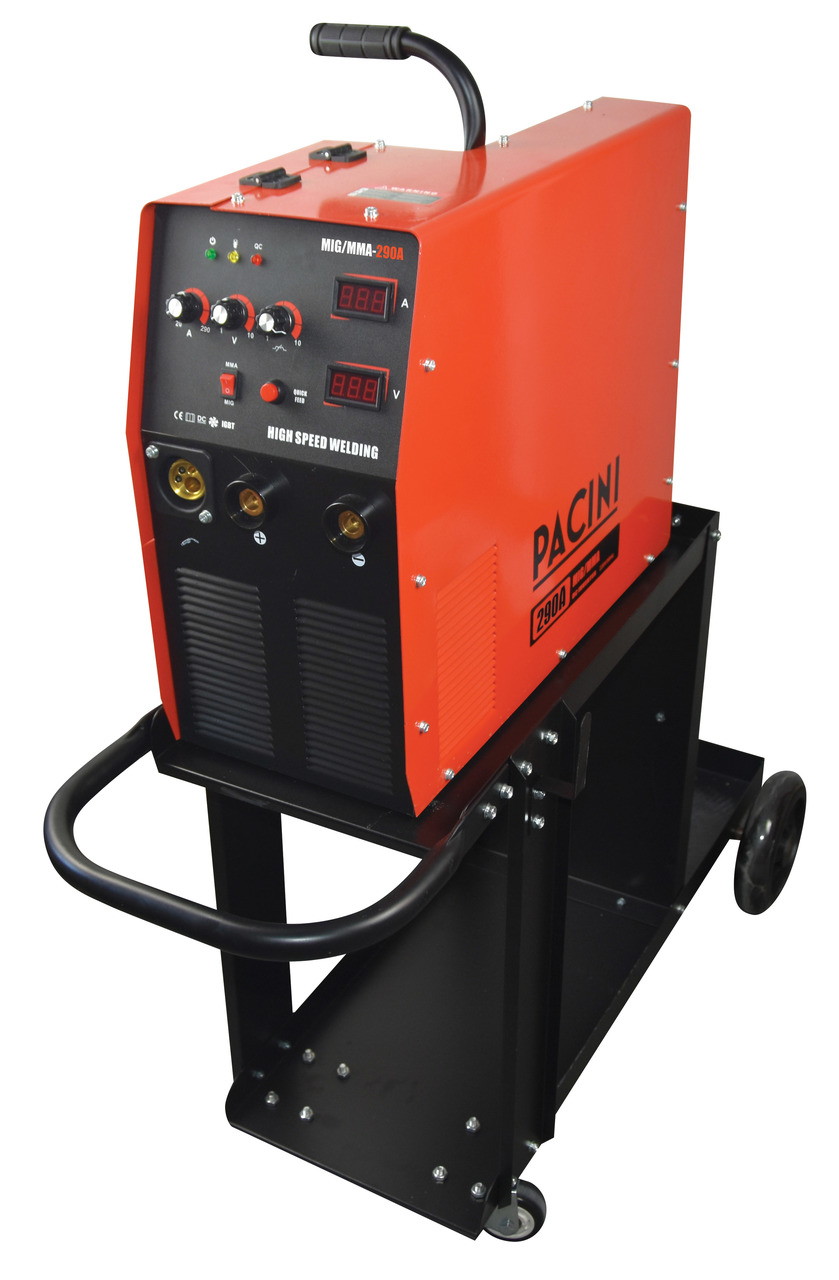

Pacini Pro MIG 290 MIG ARC Welder
Create an Account to View PricesBulk Order Discounts
| 1 | 2-4 | 5+ |
|---|---|---|
| €357.72 ex VAT | €333.33 ex VAT | €308.94 ex VAT |
Login / Create an Account to Show Price
The Pacini MIG 290 Compact is equipped with powerful IGBT components, a digital A/V display and multi-process capabilities.
The inverter offers excellent welding characteristics and consistently reliable performance for highly demanding and repetitive weld cycles.
The high-quality machine delivers an impressive 290 amps at 80% duty cycle, making the MIG 290 an excellent choice for medium duty fabrication.
Supplied with trolley and chain to hold large gas bottle.
3 Phase
Key Features
- Multi function inverter: MIG and ARC
- Digital display
- High duty cycle
- Advanced control circuitry
- Suitable for 0.6 to 1.0mm wire
- Stable welding arc with minimal spatter
- Burn back control
- Spool gun interface
- Wire inching
MIG Welder Specifications
INPUT VOLTAGE (V): 380
INPUT FREQUENCY (HZ): 50
CURRENT RANGE (A): MIG: 25 – 290 | ARC: 10 – 290
INPUT POWER (KVA): 9.4
VOLTAGE ADJUSTMENT RANGE (V): 11 – 28
NO-LOAD VOLTAGE (V): 54
DUTY CYCLE @ 40°C: 80% @ 290A
WIRE SPOOL SIZE SUPPORTED (KG): 5 and 15
EFFICIENCY (%): 85
POWER FACTOR: 0.75
INCLUDES TORCH : Yes, torch included
PROTECTION/INSULATION CLASS: IP21S/F
DIMENSIONS (L X W X H MM): 800 x 296 x 616
WEIGHT (KG): 55
| Weight | 55 kg |
|---|
