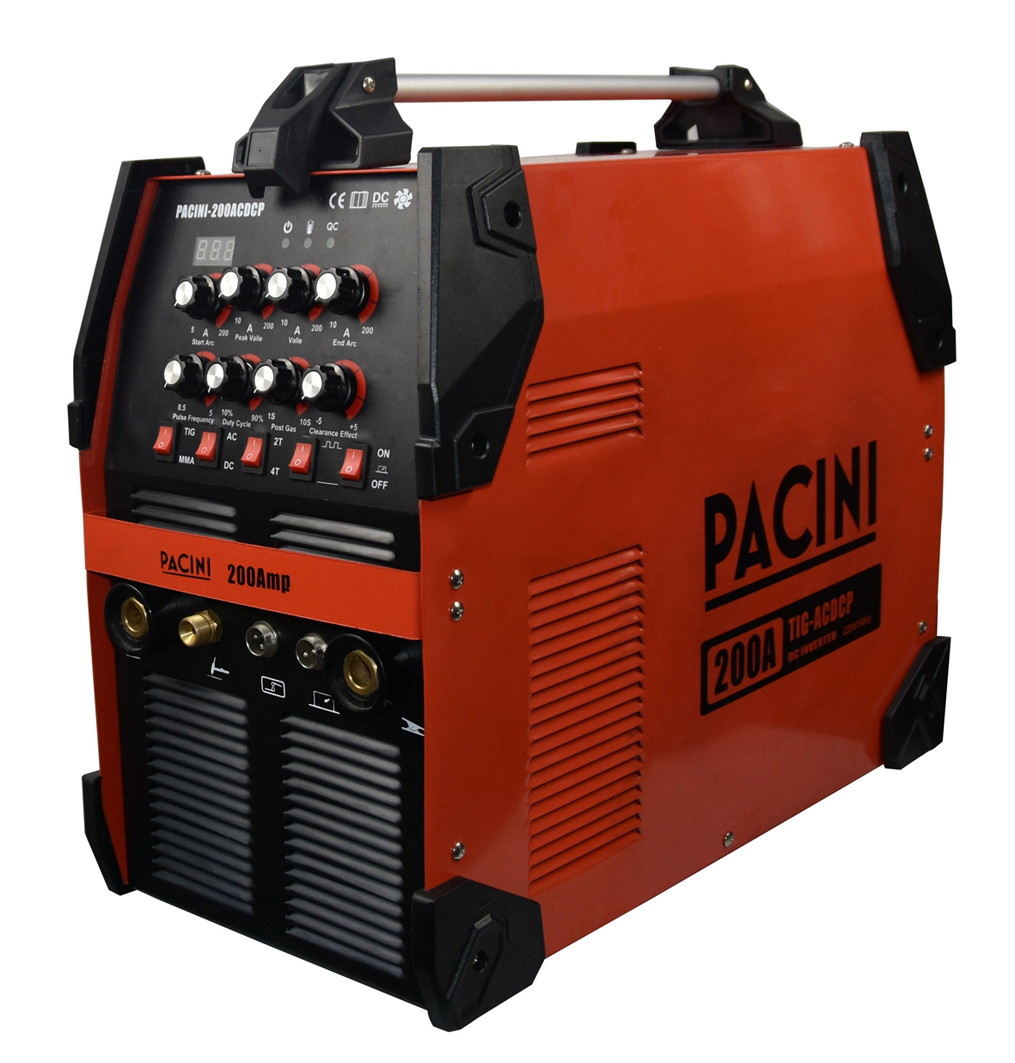

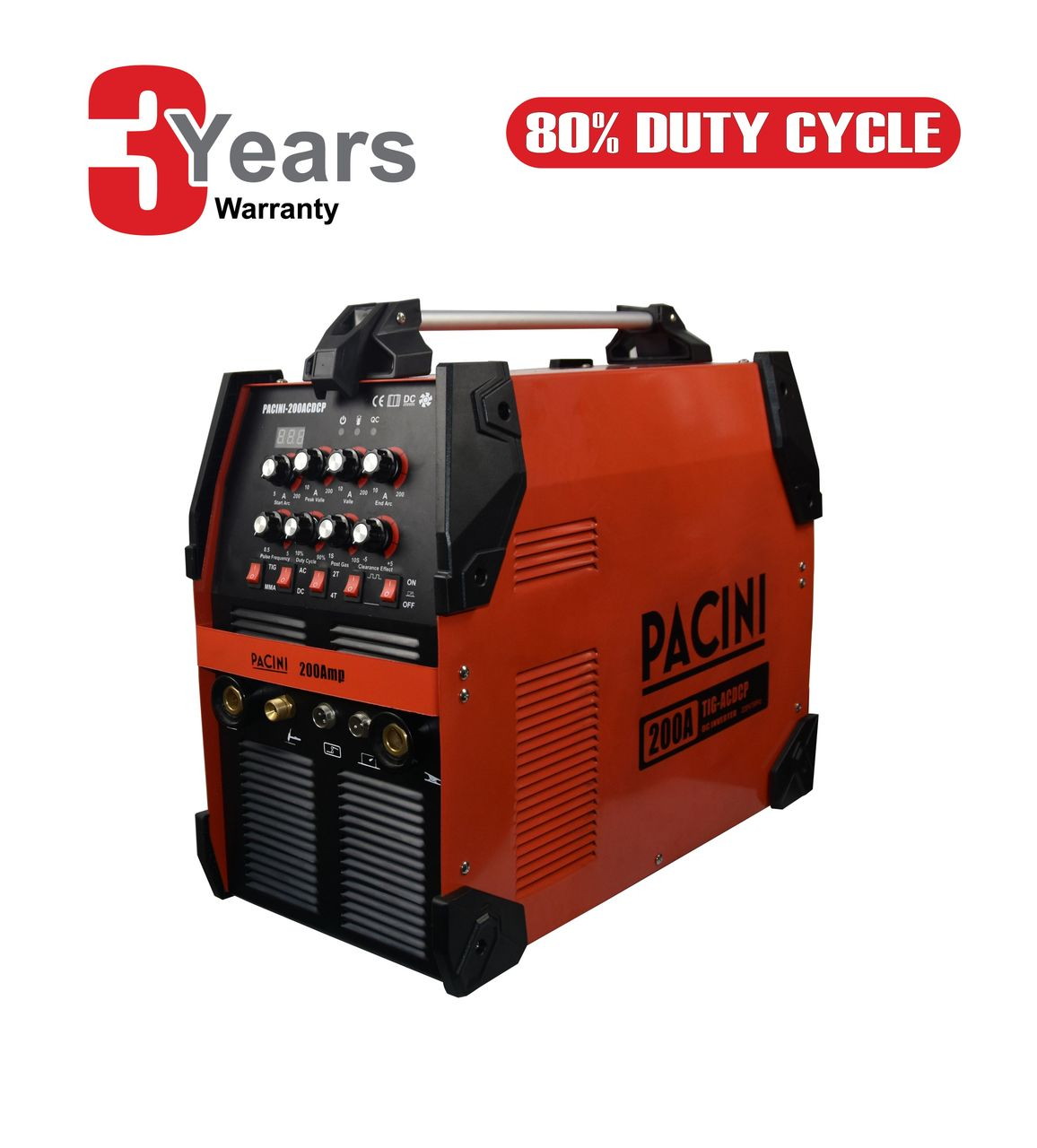

    The Pacini TIG 200 AC/DC is a technologically advanced inverter suitable for medium to large production work. The innovative and user-friendly analogue panel allows full control of the welding parameters.

    The excellent technical characteristics of the 200 AC/DC make it an ideal choice for professionally qualified TIG welders that require reliable performance.



    Key Features:

    • TIG Pulse AC/DC with analog control
    • Digital display
    • Peak current control
    • 2T/4T Control
    • Pre-post flow time
    • Up/down slope
    • Pulse adjustment
    • Pulse frequency
    • Pulse duty
    • Arc force
    • Clean width
    • Remote control interface
    • AC function for aluminium and aluminium alloys
    • DC TIG function for carbon steel, stainless and copper
    • Generator Friendly
    • 3 year warranty

    TIG Welder Specifications

    INPUT VOLTAGE (V):   230
    INPUT FREQUENCY (HZ):  50
    CURRENT RANGE (A):  TIG DC 10 – 18-15 | TIG AC 30 – 200 | ARC DC 10 – 200 | ARC AC 20 – 200
    DUTY CYCLE @ 40°C: 80% @ 200A
    EFFICIENCY (%):  85
    NO-LOAD VOLTAGE (V):  70
    PROTECTION/INSULATION CLASS:  IP21S/B
    GENERATOR FRIENDLY: Yes
    WEIGHT (KG):  25
    DIMENSIONS (L X W X H MM):  493 x 330 x 320
    TORCH INCLUDED :  Yes, torch included
